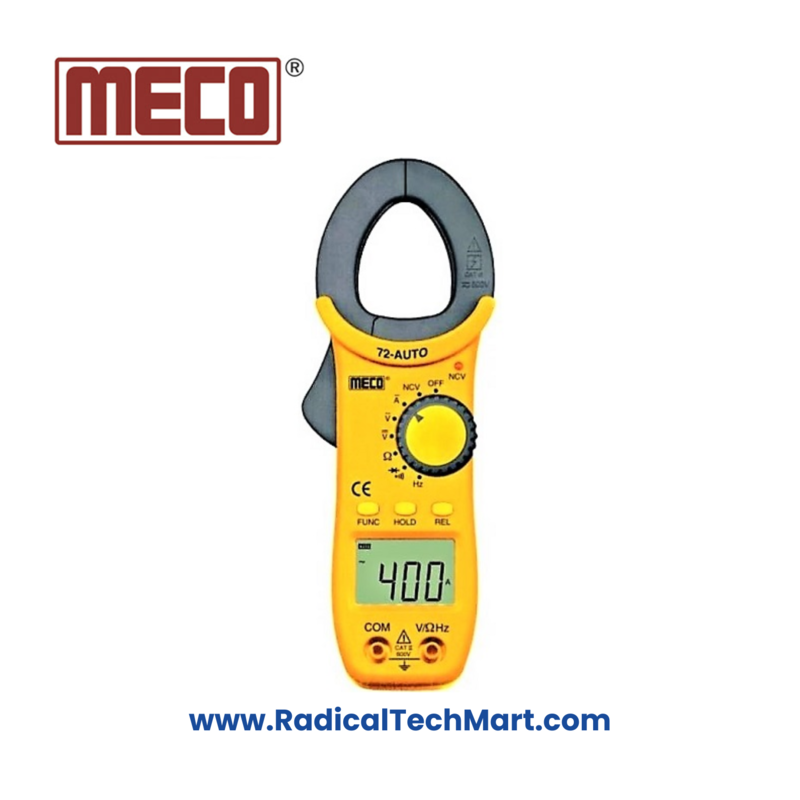

MECO 72-Auto Digital AC Clamp Meter

Key Features:

• Max. DC Voltage Range: 0-600 V
• Max. AC Voltage Range: 0-600 V
• Max. AC Current Range: 0-400 A
• Display: 3¾ digit LCD with a maximum reading of 4000 counts
• Polarity: Automatic, positive implied, negative polarity indication
• Overrange Indication: (OL) or (-OL) displayed
• Zero: Automatic zeroing function
• Battery Life: 200 hours (typical)
• Audible Continuity Test
• Diode Test Function
• Low Battery Indication
• Data Hold Function
• Auto Power Off Function
• Buttons: Function Button, Hold Button, REL Button

Measuring Operations:

• Current Measurements
• Voltage Measurements (AC or DC)
• Resistance Measurements
• Diode Test
• Continuity Measurement
• Non-Contact Voltage (NCV) Check (AC Voltage only)
• Frequency Measurement

Display and Measurement Specifications:

• Display: 3-digit LCD
• Display Counts: 4000
• Jaw Opening Size: 25 mm
• DC Voltage Range: 400 mV – 600 V
  • DC Voltage Accuracy: (0.8 % + 3 Digits)
• AC Current Range: 0-400 A
  • AC Current Accuracy: (2.5 % + 5 Digits)
• AC Voltage Range: 0-600 V
  • AC Voltage Accuracy: (1.2 % + 3 Digits)
• Resistance Range: 0-40 MΩ
  • Resistance Accuracy: (1.2 % + 3 Digits)
• Frequency Range: 10 Hz – 10 MHz
  • Frequency Accuracy: (0.5 % + 2 Digits)

Power and Operating Conditions:

• Power Source: 2 x AAA 1.5 V batteries
• Operating Environment: 0°C to 50°C
• Storage Environment: -20°C to 60°C
• Relative Humidity: 80% RH

Physical Specifications:

• Weight: 170 g
• Dimensions: 185 x 65 x 28 mm

Included Accessories:

• 1 Pair of Test Leads
• Instruction Manual
• Carrying Case
• Battery Pre-installed

Warranty:

• 1 Year Warranty
